Posted Tue, 22 Nov 2022 02:01:13 GMT by Li, Jeremy
The command for MSO 4 series doesn't work correctly for MDO 34, It seems only below type could be selected.
Syntax TRIGger:A:TYPe {EDGe|LOGIc|PULSe|BUS|VIDeo}

But below commmand is working fine if we select the timeout type manually.
TRIGger:A:TIMEOut:POLarity
TRIGger:A:TIMEOut:SOUrce
Posted Tue, 22 Nov 2022 20:48:02 GMT by Teles, Afonso
Hi Jeremy,

Indeed the SCPI interface for the 4 and 3 series are slightly different.

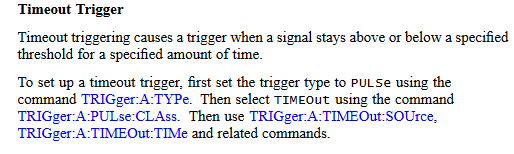

The programmer's manual describes how to setup the timeout trigger on page 2-67 (picture attached). You will notice it is a different procedure from that you expected from the MSO4.
Posted Wed, 23 Nov 2022 01:02:17 GMT by Li, Jeremy
Hi Teles.
Thank you very much.  It is ok now by adding "type+class ".
